消声器

一、DYX型低压氧气放散消声器

1、结构型式:本消声器是一种节流扩散与耐热吸声相结合的复合型消声器,内部结构采用了抗燃性能优良的不锈钢。

2、适用范围:主要用于降低空气分离装置和氧气压缩机后放散氧气时产生的动力性噪声,适用压力≤1.0MPa,消声量:30-40dBA),使用温度≤200°C

DYX type low pressure oxygen discharge silencer

1 Structure: This silencer is a kind of combination silencer with throttle and depressure, heat resistance and sound absorption function. The inner shell is made of heat resistant stainless steel.
2 Application: Used to reduce the noise of oxygen compressor with pressure ≤1.0MPa, noise reduction volume: 30-40dB
A, temperature≤200°C.



二、高炉风机配套进排气消声器

高压离心通风机及轴流风机是我国工业生产中应用十分广泛的机械设备之一,其运行时噪声巨大,实测声级约100~120dBA,噪声污染十分严重。实测结果表明,高压通风机在运行时,其空气动力性噪声要比机械噪声高10~20dBA,因此,安装消声器以降低其空气动力性噪声是十分必要的。

我公司为西安陕鼓动力股份有限公司消声器的专业配套生产企业,生产过程严格按照陕鼓标准执行,严格的质量控制体系,保证我公司生产的每一台消声器都是合格产品,用户可放心使用。

我公司生产的高炉鼓风机消声器可分为进气消声器和排气消声器两种,适用风量500~21000m3/min,消声量从30~50dBA,用户可根据所需风量及形式选择消声器。

我公司生产的消声器均配对法兰及紧固件,现场安装时只需把消声器的配对法兰与现场管道焊接,后用螺栓拧紧即可,放空消声器的安装只要把消声器的支座与现场支架采用螺栓连接即可。

Blast furnace blower fan inlet and outlet gas silencer

High pressure centrifugal blower and axial flow fan are widely applied mechanical equipments with huge noise. Actually sound level could be 100~120dBA which cause severe noise pollution. After checking, when high pressure blower is running, its air dynamic characteristics noise is 10~20dBA higher than that of mechanical noise. Therefore, it is necessary to install filter to diminish its air dynamic characteristic noise.
Our company is the qualified complementary company for Xian Shangu Dynamic Share Com., Ltd. The producing process is strictly according to Shangu Standards, which ensure that each qualified silencer can be used without worry.
This type of silencer has two kinds: inlet silencer and discharge silencer. Suitable air flow from 500 to 21000 m 3 /min and noise reduced from 30~50dBA.
All silencers are matched with flange and fixing. When assemble on site, first welding counter flange and pipeline then fasten bolts; when assembly vent silencer, only need connect through bolt silencer bearing and bracket on site.

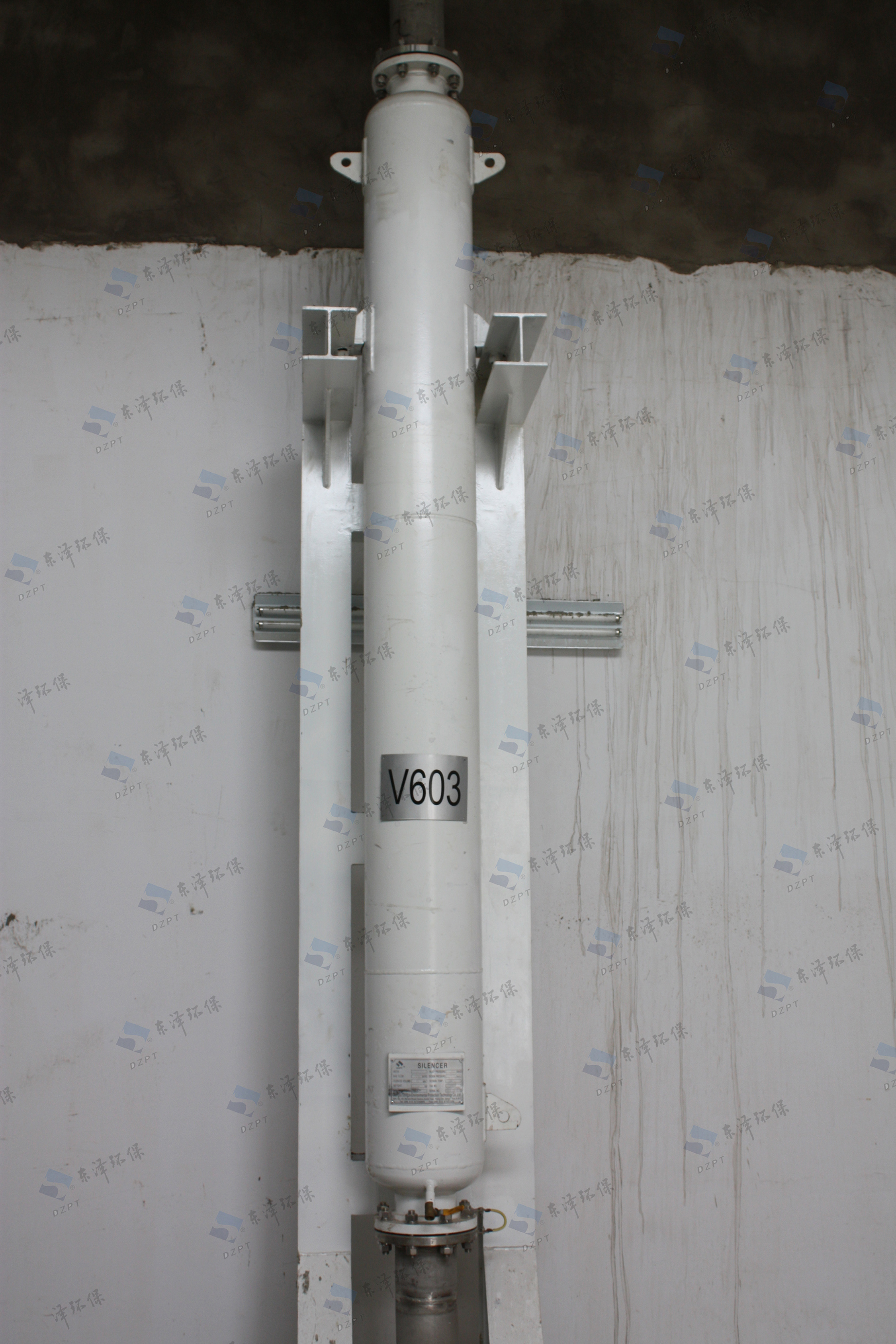

三、GYX型高压氧气放散消声器

1、结构型式:本消声器是一种节流降压,耐热吸声复合型消声器,内部结构采用了抗燃性能优良的不锈钢。

2、适用范围:本消声器适用于降低氧气压缩机放散时产生的空气动力性噪声,适用压力≤4.0MPa,消声量:30-40dBA),使用温度≤200°C

 GYX type high pressure oxygen discharge silencer

1 Structure: This silencer is a kind of combination silencer with throttle and depressure, heat resistance and sound absorption function. The inner shell is made of heat resistant stainless steel.
2 Application: Used to reduce the noise of oxygen compressor with pressure ≤4.0MPa, noise reduction volume: 30-40dB
A, temperature ≤200°C.


四、KODP型氧气放散消声器

1 结构型式:本系列消声器是一种扩容阻抗复合式消声器,内部结构采用了抗燃性能好的不锈钢及铝合金。

2 适用范围:本系列消声器适用于降低氧气压缩机后放散氧气时产生的动力性噪声。

KODP oxygen diffusing silencer

1 Structure: This series silencer is one kind of ampliative impedance compound silencer, with internal structure made of well heatproof stainless steel and aluminum alloy.
2 Applicable scope: This series silencer is suitable for reducing kinetic noise produced by diffusing oxygen of oxygen compressor.

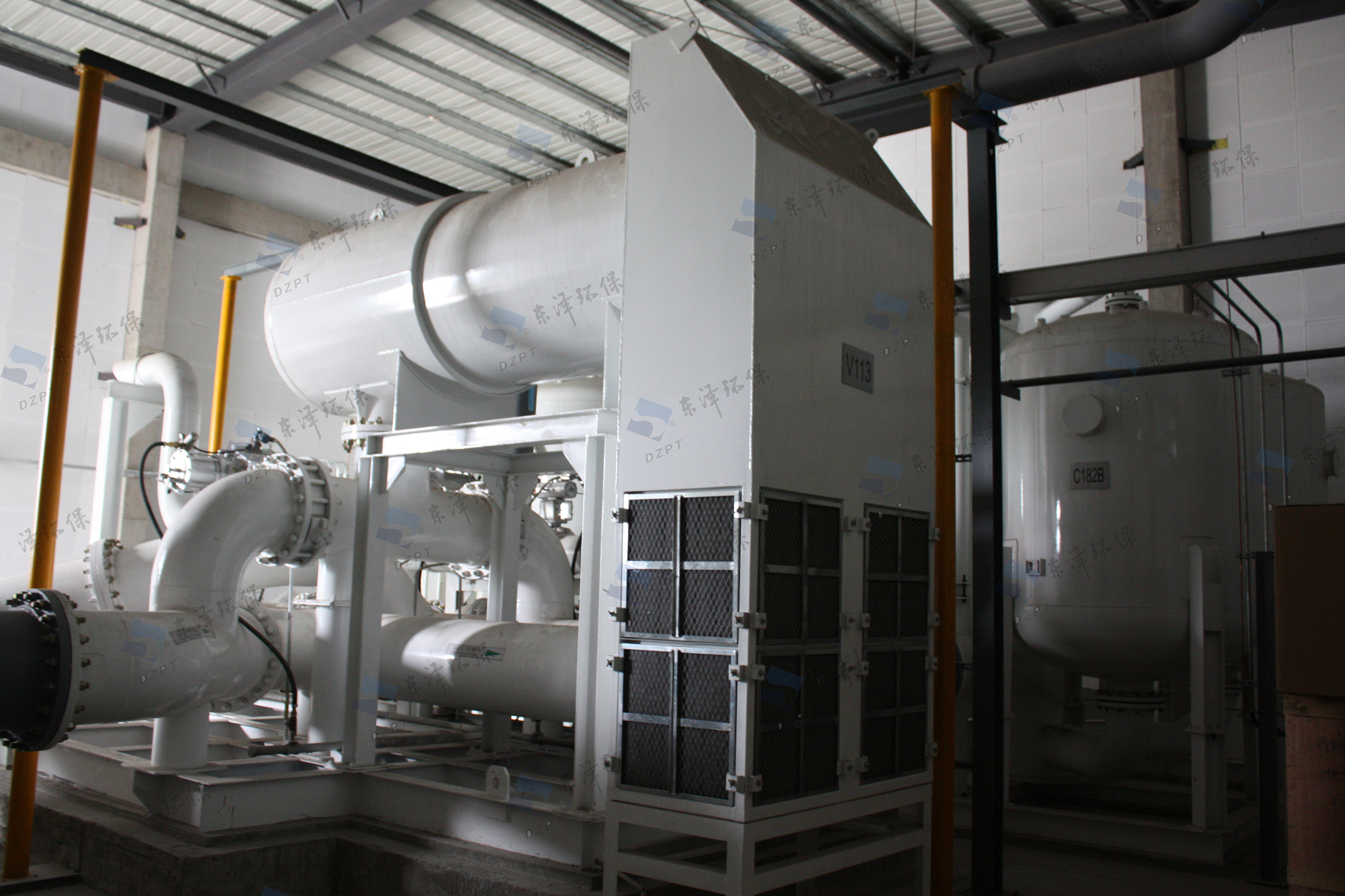

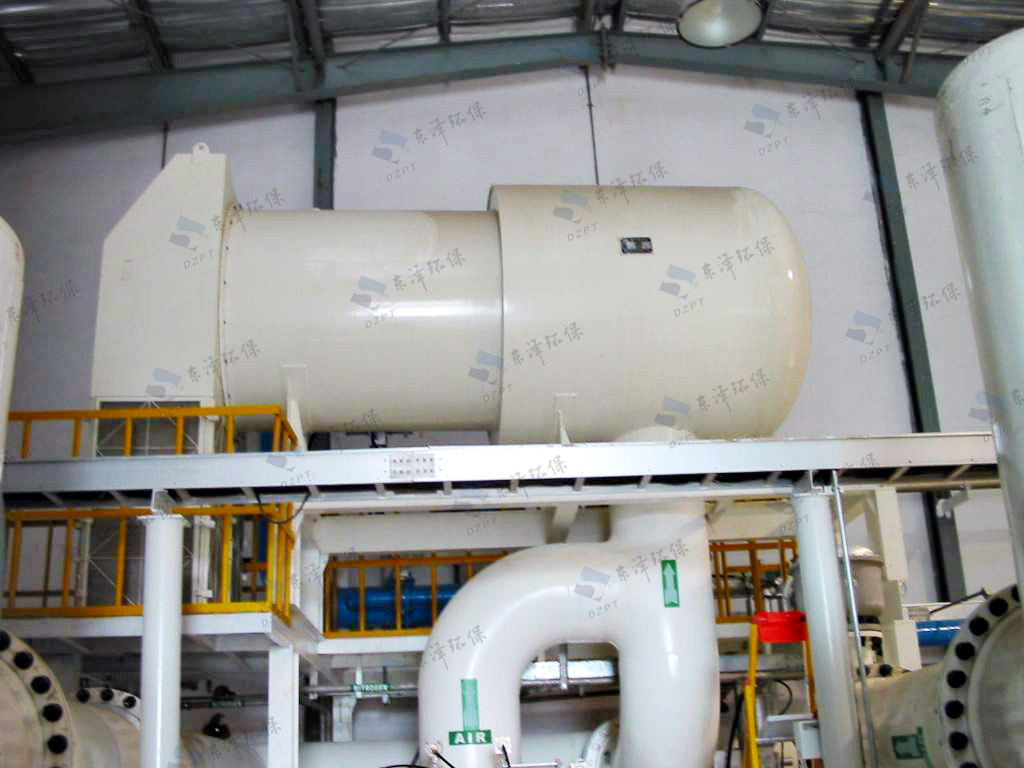

五、KYX型空压机配套消声器

1 结构型式:本系列消声器采用阻性吸声段与抗性段相结合的阻抗复合型消声器,可与不同风量的空压机相配套。

2 适用范围:KYX型消声器主要用于降低空压机进排气口产生的空气动力性噪声,阻损小于200Pa,消声量≥25dBA)

KYX air compressor compatible silencer

1 Structure : This series silencer adopts impedance compound silencer consisting of resistant sound absorption section and anti-section , and it can be compatible with air compressors with different amount of wind load .
2 Applicable scope: This KYX silencer is mainly used in reducing air kinetic noise produced at the inlet and outlet of air compressor, with a loss ≤200Pa and noise elimination ≥25dB(A) .

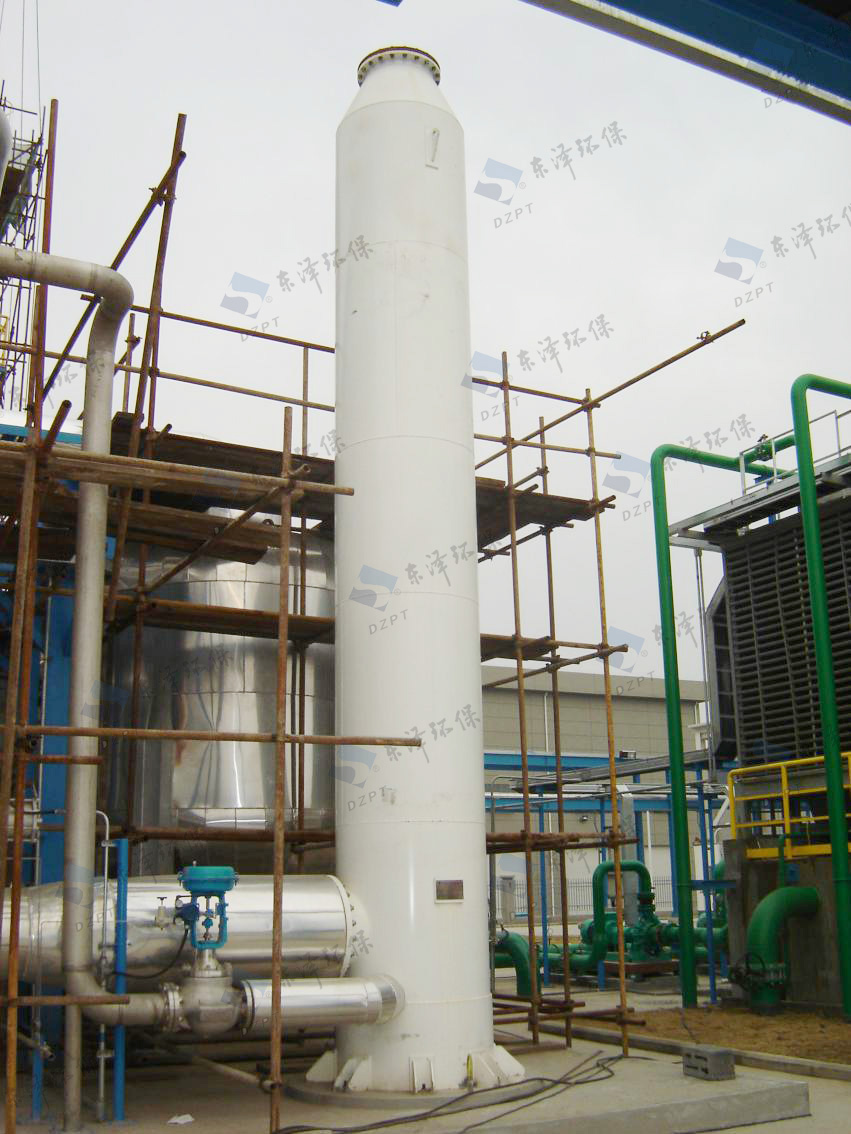

六、ZX系列小孔喷注消声器

ZX系列小孔喷注消声器系九十年代研制、开发的新一代降噪产品,它根据大孔降压小孔喷注消声的原理,通过优化设计,其降噪指标、安全性能和使用寿命远优于目前市场上同类产品,可更好的满足电力、冶金、石油、化工、纺织、造纸、食品等工业的低压、中压、次高压、高压、超高压、亚临界、超临界等参数的各种锅炉、压力容器管道排汽()放空及其安全阀、释放阀排汽()的降噪需要。

与国内、外同类产品相比,本系列大孔降压消声器具有以下独特优点:

(1)消声量大。ZXB子系列达到40dB(A)ZXC子系列达30dB(A)(均已考虑指向性修正);

(2)体小质轻,ZX消声器与排汽管直接焊接,安装方便。在运行和停炉时能自由伸缩,使排汽管道不因消声器的安装而受到额外荷载,保证排汽管道工作的安全可靠;

(3)结构简洁、合理、检修、维护工作量小;

(4)消声筒材质采用不锈钢(1Cr18Ni9Ti)制作,具有耐热、耐腐性,能经久耐用。

特别说明:安装ZX子系列消声器后,安全阀、释放阀的排量不受影响,启跳、回座压力亦不受影响。

 ZX series Porous Diffusion Silencer

ZX series porous diffusion silencer is researched and developed in 1990, under the principle of big hole depressure spray silence and through optimal design, its noise lowering index and service time are far excellent than its counterpart on market at present, which can better meet noise-lowering requirement of all kinds of boiler with parameters of low pressure, middle pressure, sub-high pressure, high pressure, super-high pressure and subcritical in many fields such as electric power, metallurgy, petroleum, chemical industry, textile, papering and foodstuff, pressure vessel pipeline gas let empty and its safe valve and discharge valve gas let.
Compared with its counterpart at home and abroad, this series big opening pressure decreasing silencer possesses the following special benefits:
1big noise elimination amount. ZXB subfamily amounts to 40dBA, ZXC subfamily reaches 30dBA)(all considered to guiding revise
2small volume light quality, ZX series silencer is directly welded with gas discharge pipe which facilitate fixing. When operating and stopping can freely be flexed which make gas discharge pipeline avoid extra load as a result of fixing silencer, to ensure safe and reliable gas discharge pipeline working;
3simple and reasonable structure, small working amount for examining, repairing and maintenance;
4The material for silencing body adopts stainless steel1Cr18Ni9Ti, featured with thermal resistant, corrosion resistant and wearable.
